World Cat 400CC-X First Glance

World Cat introduces its biggest center console catamaran to date—a near-40-footer.

September 27, 2021

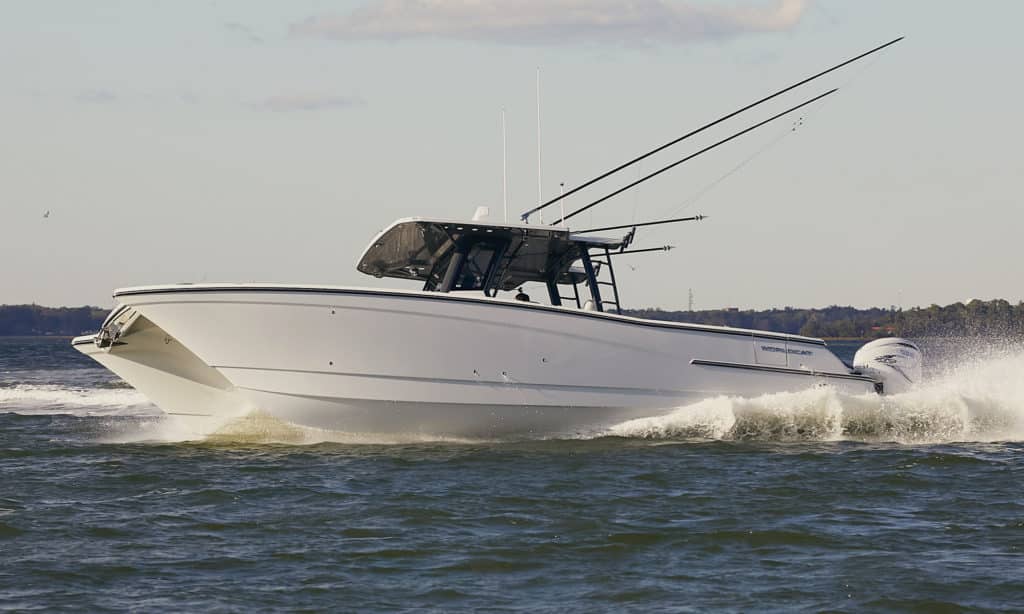

World Cat 400CC-X cruising to the fishing grounds
LOA: 39 ft.8 in.; Beam: 12 ft. 8 in..; Weight: 14,500 lb.; Draft: 1 ft. 9 in.; Transom Deadrise: N/A (catamaran); Fuel Capacity: 604 gal.; Max HP: 1,200 hp Courtesy World Cat

Big, powerful catamaran-style boats seem to taking over the offshore fishing world, and the latest example is the new World Cat 400CC-X.

The 400CC-X represents World Cat’s biggest center console and serves as the sister flagship to the company’s 400DC-X dual console boat. Designed to serve as an effective and stable offshore fishing machine, the highly customizable 400CC-X also offers comfortable appointments for cruising fun with family and friends.

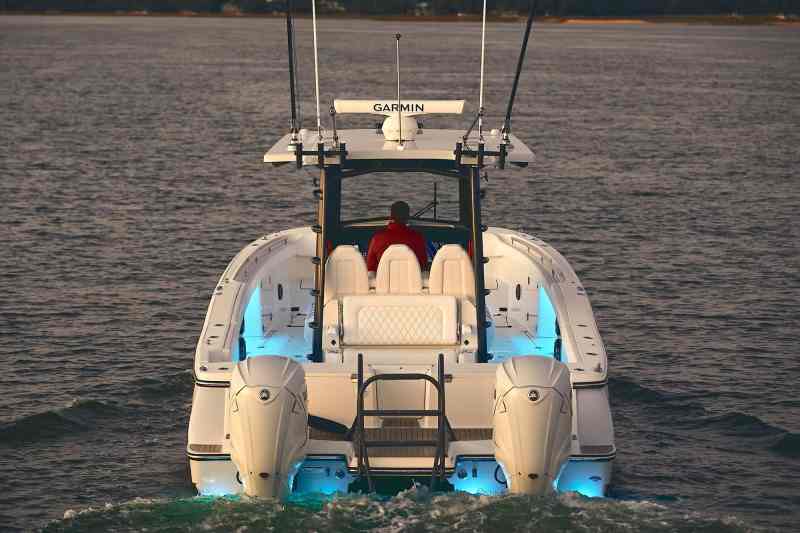

World Cat 400CC-X with lighting on
The World Cat 400CC-X offers abundant available seating, as well as 200 square feet of level deck space for fishing action. Courtesy World Cat

The layout of this cat allows for a wide stance that carries well forward to help create 200 square feet of deck space to accommodate a big crew of anglers and offer plenty of elbow room to fish.


There’s also comfortable seating, starting with a helm bench for three, plus a rear-facing bench with a 70-quart insulated cooler underneath. Options include triple helm chairs with arm rests and an electric-adjustable center seat or a second row of triple helm seats. Optional “Cat Track” seating in the bow area consists of configurable 68-quart cooler seats that slide and lock outward to create U-shaped seating or slide in to the center to form a coffin-box seating arrangement.

Check out this video of new World Cat 400CC-X in action. Courtesy World Cat

Livewell choices include a 30-gallon transom well complemented by a cooler with a chiller plate on the opposite side of the walk-through transom. In addition, you can opt for 60 gallons of aquarium-style transom livewell capacity or a 200-quart insulated transom fish box.


The new World Cat features a center console with a forward-entry hinged door for access to the enclosed head compartment, which boasts a full fiberglass liner, starboard side acrylic portlight, vanity with a freshwater sink and Corian countertop, as well as an electric flushing marine toilet.

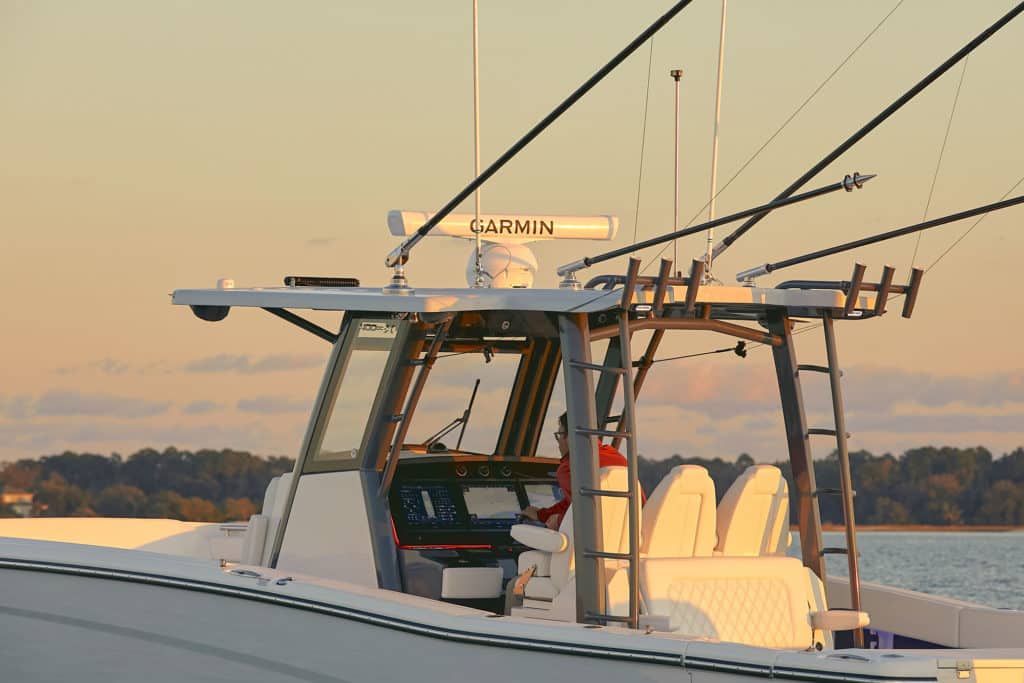

World Cat 400CC-X helm
The World Cat 400CC-X features an integral hardtop, roomy console panel and three-sided tempered glass windshield. Courtesy World Cat

Back topside, the forward console features more seating with fold-down armrests. There are also insulated fish boxes under the forward deck—offering a combined capacity of 154 gallons—with overboard Gulper diaphragm pumps. The 400CC-X also features 115 gallons of fishbox capacity below the deck of the aft cockpit.

Read Next: Multihull, Catamaran Boats Invade the Offshore-Fishing Market


An integral hardtop and three-side tempered-glass windshield protect the helm area and the dash, which is spacious enough for an optional pair of Garmin 22-inch multifunction displays. The windshield includes a motorized vent to usher in fresh air.

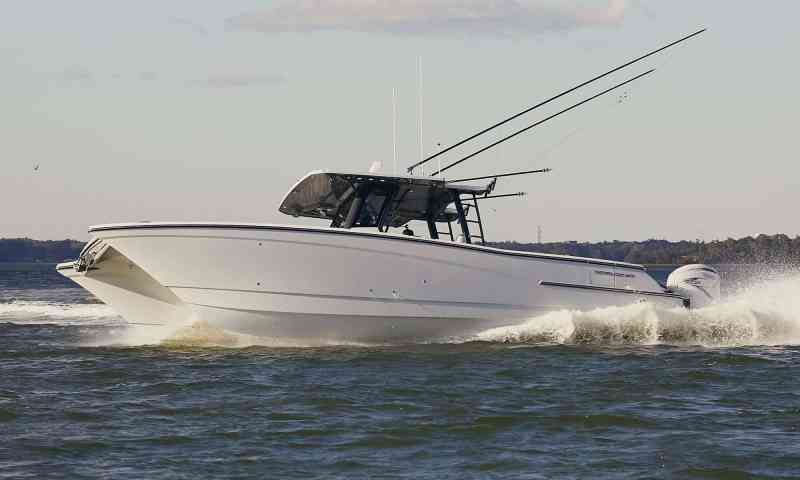

World Cat 400CC-X running in a turn
With a hull designed to bank inward during high-speed turns, the World Cat 400CC-X can achieve speeds in the upper 50-mph range when powered by quad Yamaha F300 outboards. Courtesy World Cat

Available power includes twin Yamaha 425 XTO outboards or quad Yamaha F300 outboard engines. With quad Yamaha F300s, the 400CC-X accelerates from 0 to 20 mph in 4.79 seconds and achieves a top speed of 57.4 mph at 5,900 rpm, according to tests conducted by Yamaha.

The big cat achieved optimum fuel efficiency at 3,000 rpm and 27.5 mph, where the four 300 hp outboards burned 24.4 gallons per hour for 1.13 mpg. That equates to a range of 614 miles, based on 90 percent capacity of the 604-gallon fuel capacity.
