12 Crystal-Clear Raymarine Chirp Sonar Snapshots Deciphered

Bait balls, striped bass and mackerel — all in high-definition color.

June 3, 2016
Share on facebook
Share on twitter
Share on pinterest
Share on email
Share on facebook
Share on twitter
Share on pinterest
Share on email

Capt. Terry Nugent of Riptide Charters out of Cape Cod, Massachusetts, captured a series of remarkable screen shots, using his Raymarine CP570 chirp sonar module with an Airmar R599 transducer, CP100 chirp module and Raymarine’s DownVision.

Nugent, a longtime New England charter guide and angler, captioned each image with a description of the bait and predators, based on his experience. One image features large sandeels being eaten by mackerel, with a school of large striped bass waiting on the dropoff. The Chirp unit’s high-definition target separation even shows — in one image — a striped bass inside a bait ball.

Raymarine CP570/R599 CHIRP Sounder Screenshots

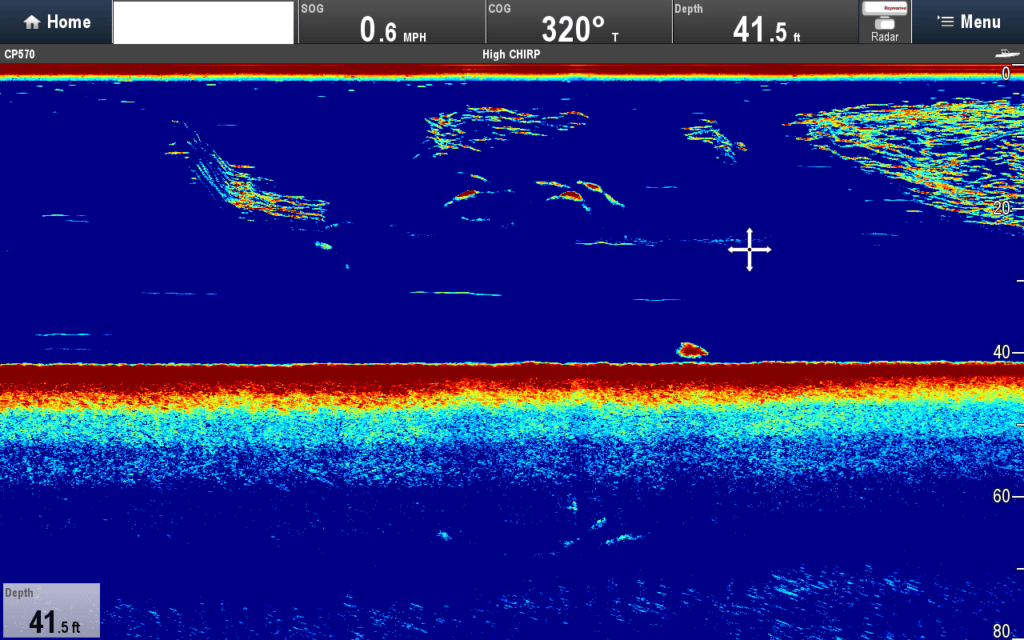

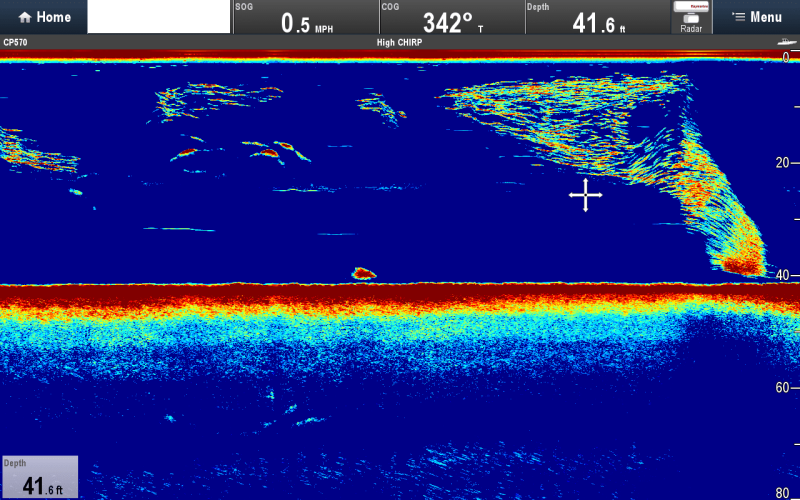

Large sandeels (upper left) being eaten by mackerel (middle) with a school of large striped bass sitting just off the edge in the deeper water picking off stragglers (far right). Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots

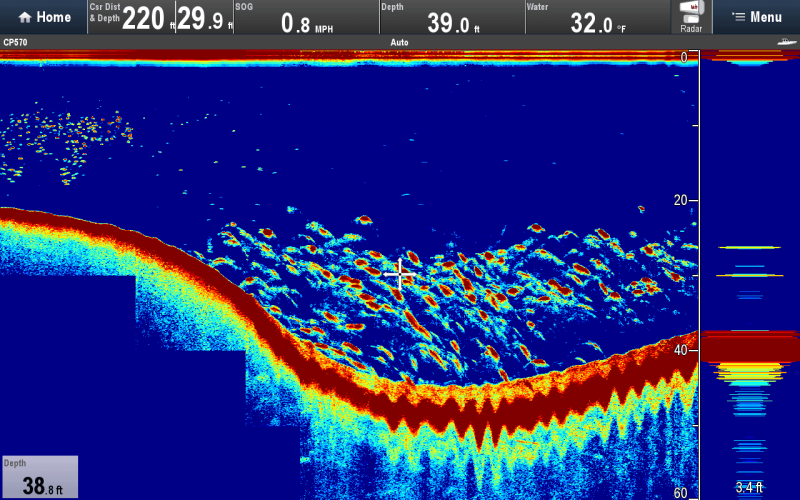

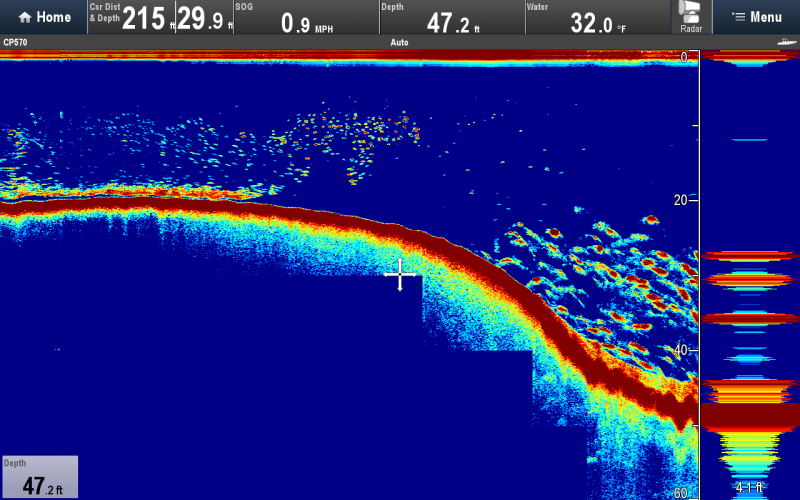

Several large striped bass feeding on 3 small and 1 large school of mackerel. A small school of sandeels is on the bottom. Notice how the mackerel are not shown as a single large mass, but as a school of small individuals. The separation the sounder has is incredible. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots

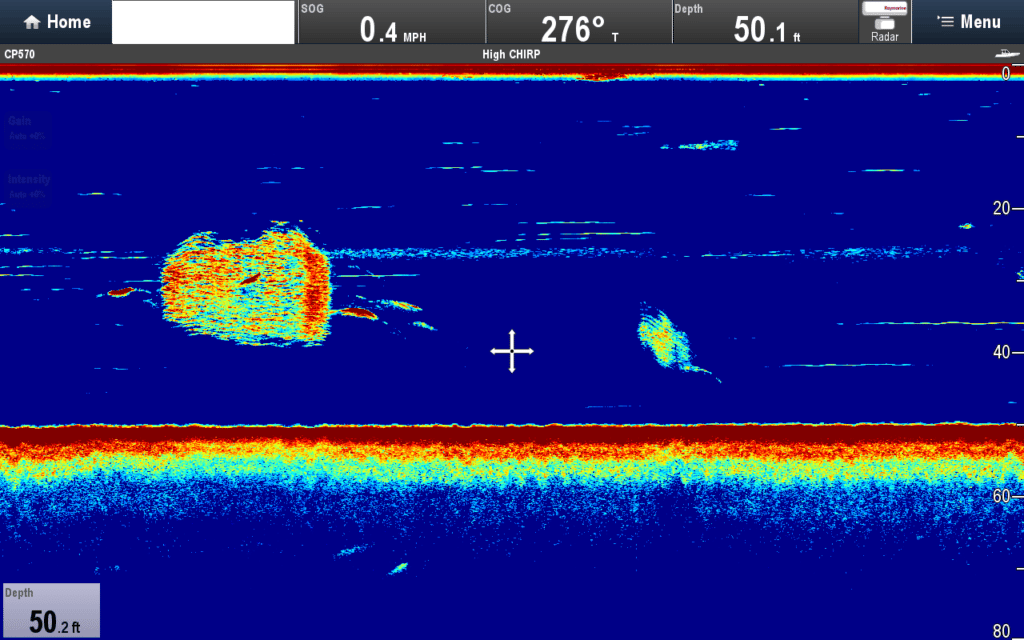

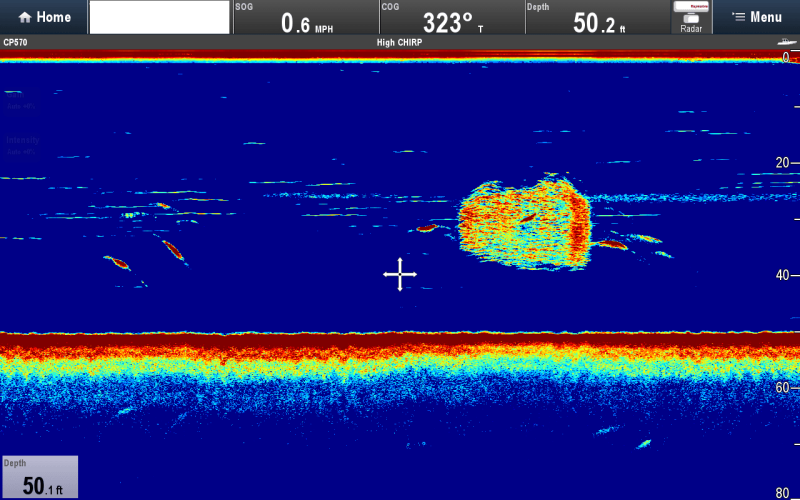

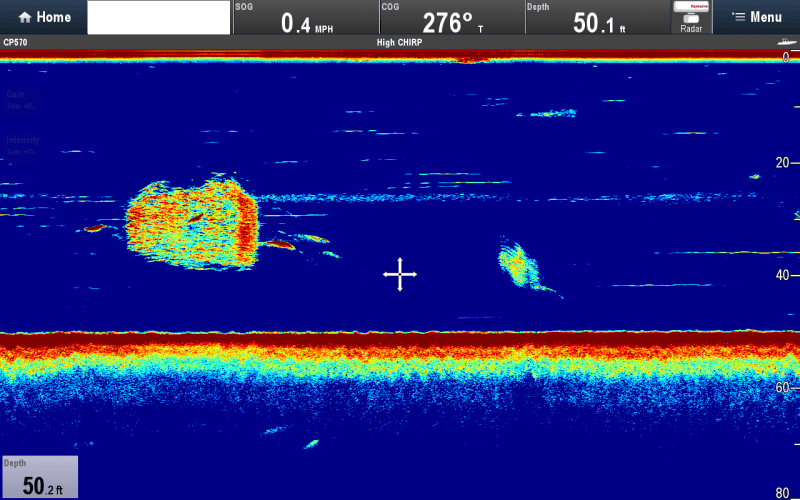

Several striped bass feeding on a big ball of mackerel. Notice the striper in the middle of the bait ball. The CP570/R599 CHIRP sounder clearly shows the bass as a separate target in the tight mass of bait. There is another smaller bait ball to the right. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots
Large sandeels (upper left) being eaten by mackerel (middle) with a school of large striped bass sitting just off the edge in the deeper water picking off stragglers (far right). Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots
Several striped bass feeding on a big ball of mackerel. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots

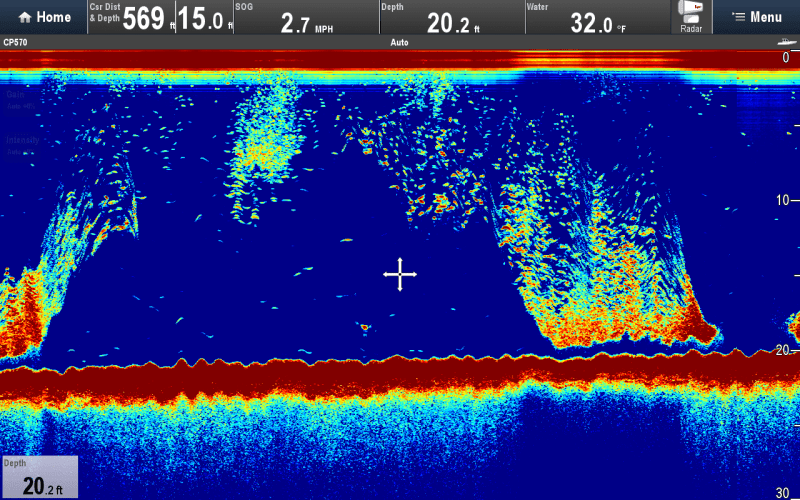

A small school of striped bass on the upper left with a small bait ball on the bottom right. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots

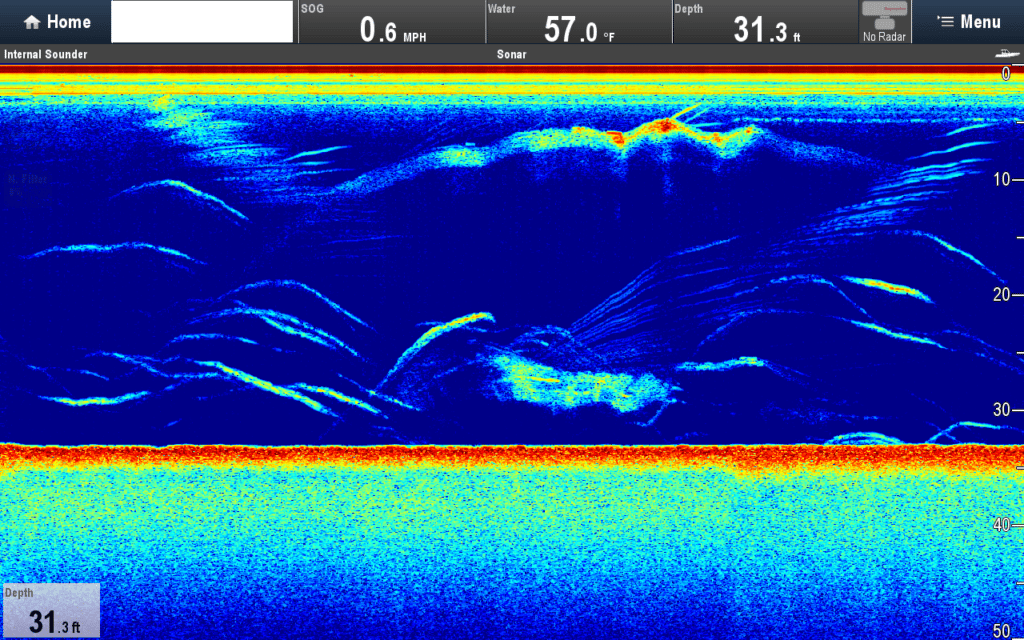

Striped bass chasing a school of large sandeels. This sounder shows the fishes movement like I’ve never seen before. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots
Striped bass chasing sandeels. This sounder really shows the fishes movement with amazing detail. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots
Striped bass (far left and far right) chasing a school of mackerel (middle). Notice the movement on the bass far right as he chases and eats a mackerel. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots
Several large striped bass feeding on 3 small and 1 large school of mackerel. A small school of sandeels is on the bottom. Notice how the mackerel are not shown as a single large mass, but as a school of small individuals. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots

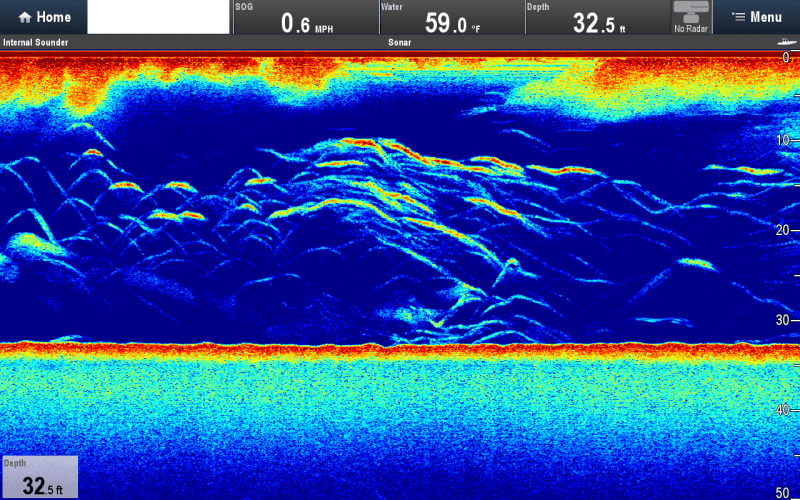

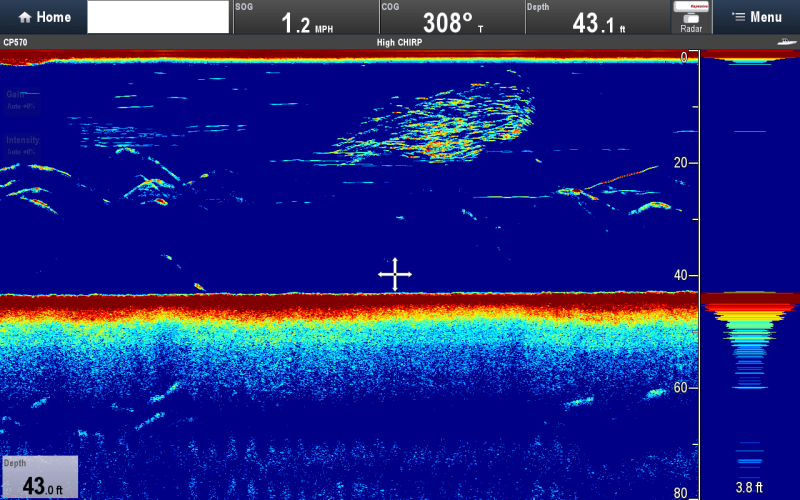

A large cloud of sandeels (just above the bottom) with mackerel above them and striped bass feeding on both baits. Courtesy Capt. Terry Nugent
Raymarine CP570/R599 CHIRP Sounder Screenshots

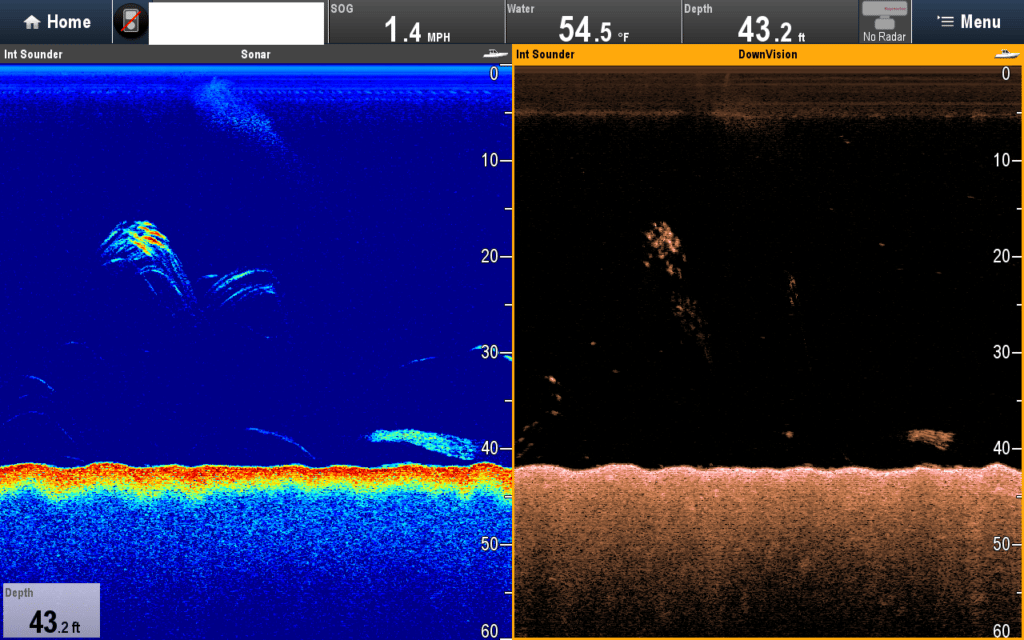

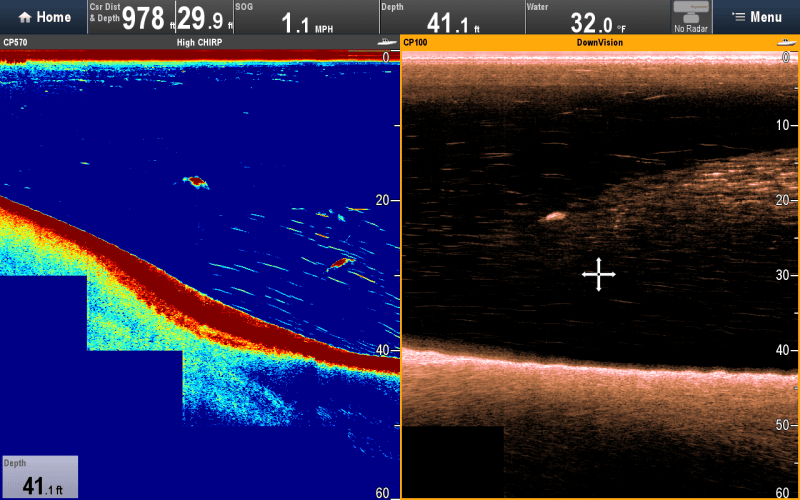

Stripers on a dropoff feeding on squid. CP100 Imaging for comparison (right side). Courtesy Capt. Terry Nugent
