Rigging System 1: Standard Set-Up with Double Halyard Lines and Bungee Cord

setting up offshore outriggers deep see fishing trolling spread

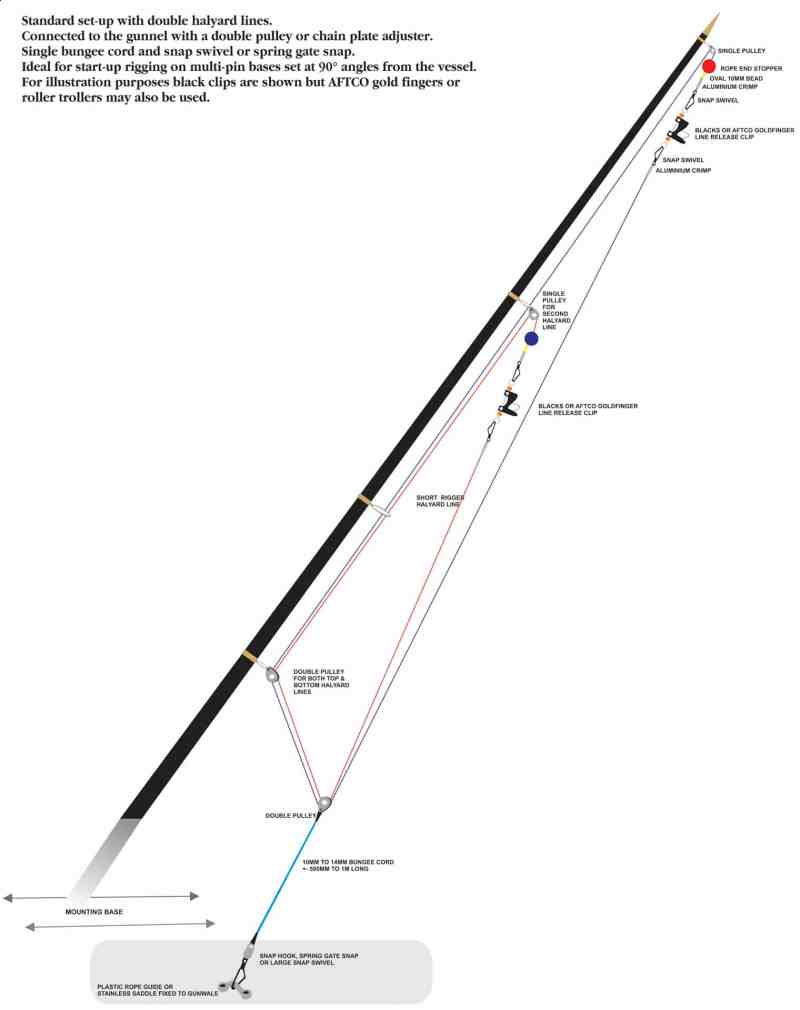

Standard set-up with double halyard lines and bungee cord Courtesy Ski-Boat Magazine

Connected to the gunnel with a double pulley or chain plate adjuster.
Single bungee cord and snap swivel or spring gate snap.
Ideal for start-up rigging on multi-pin bases set at 90-degree angles from the vessel.
For illustration purposes, Black Marine Products clips are shown but AFTCO gold fingers or roller trollers may also be used.

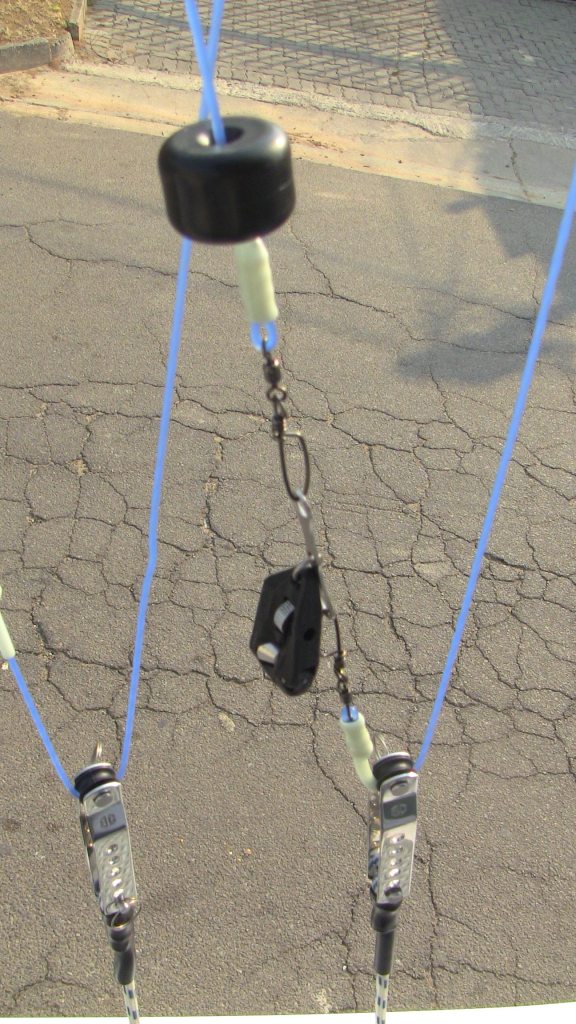

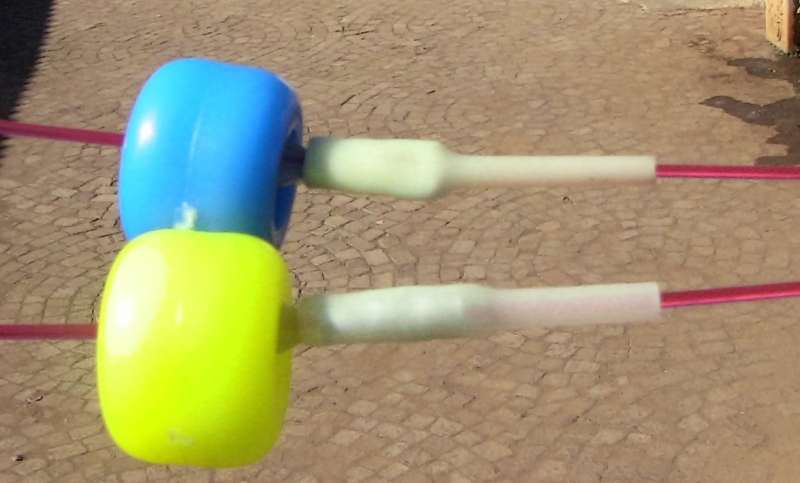

Though not shown in the illustration just above this photos, these light crimp sleeve protectors are valuable when slid over the aluminium crimps. First, they protect the beads and rope end stoppers from coming into contact with the hard crimps, and secondly, the aluminium crimps some corrosion protection. They also make your set-up look more professional all round. Courtesy Ski-Boat Magazine

Rigging System 2: Standard Set-Up with Double Halyard Lines and Sheet Line and Bungee Cord

Standard set-up with double halyard lines and sheet line Courtesy Ski-Boat Magazine

Connected to the gunnel with a double pulley or chain plate adjuster.
Single sheet line, rope guide and cam cleat.
Ideal for start-up rigging on multi-pin bases set at 90-degree angles from the vessel.
For illustration purposes, Black’s clips are shown but AFTCO gold fingers or roller trollers may also be used.

This closeup of the rigging shows the rope end stopper, bead, crimp, light sleeve and snap swivel. Courtesy Ski-Boat Magazine

setting up offshore outriggers - cam cleat and rope guide

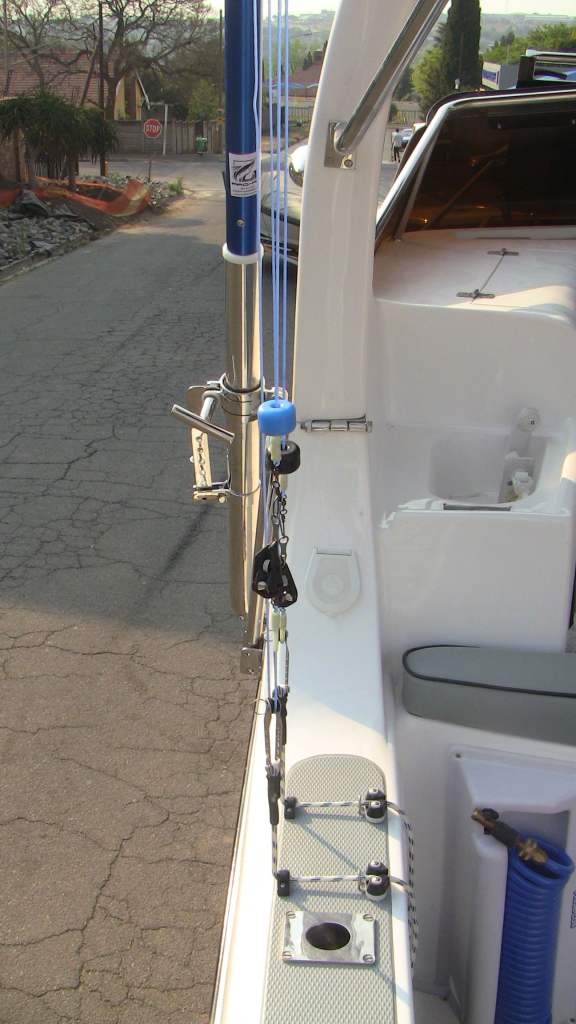

Side view of the cam cleat and rope guide installation on the gunwale. Courtesy Ski-Boat Magazine

Rigging System 3: Professional Set-Up with Double Halyard Lines

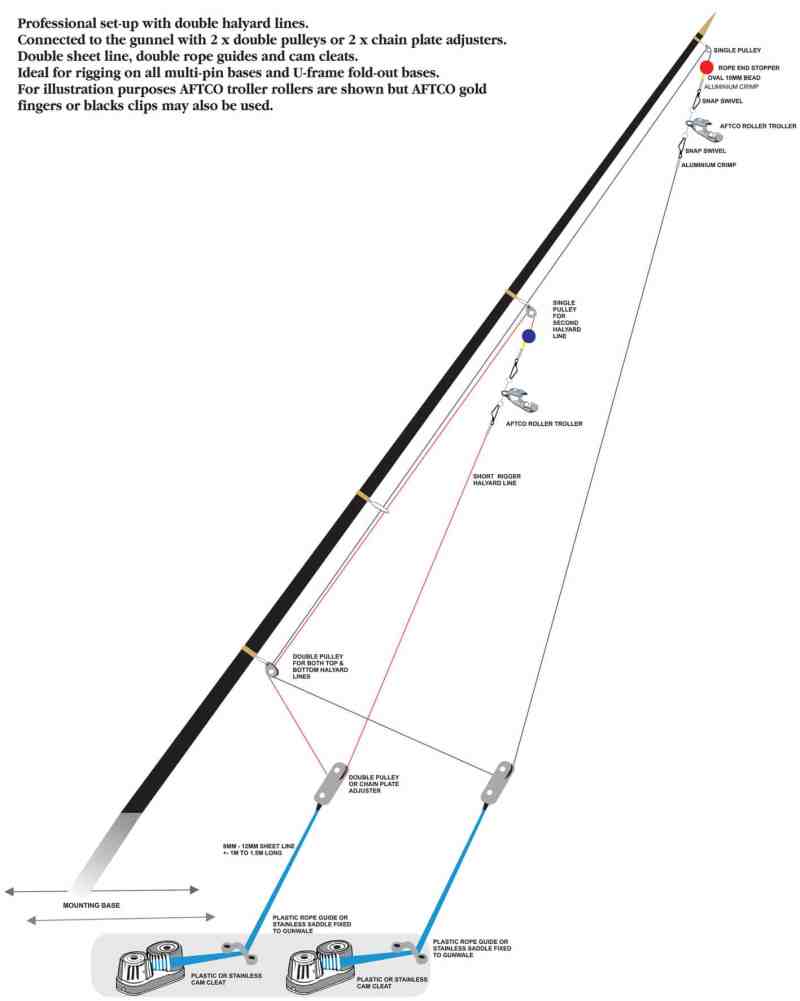

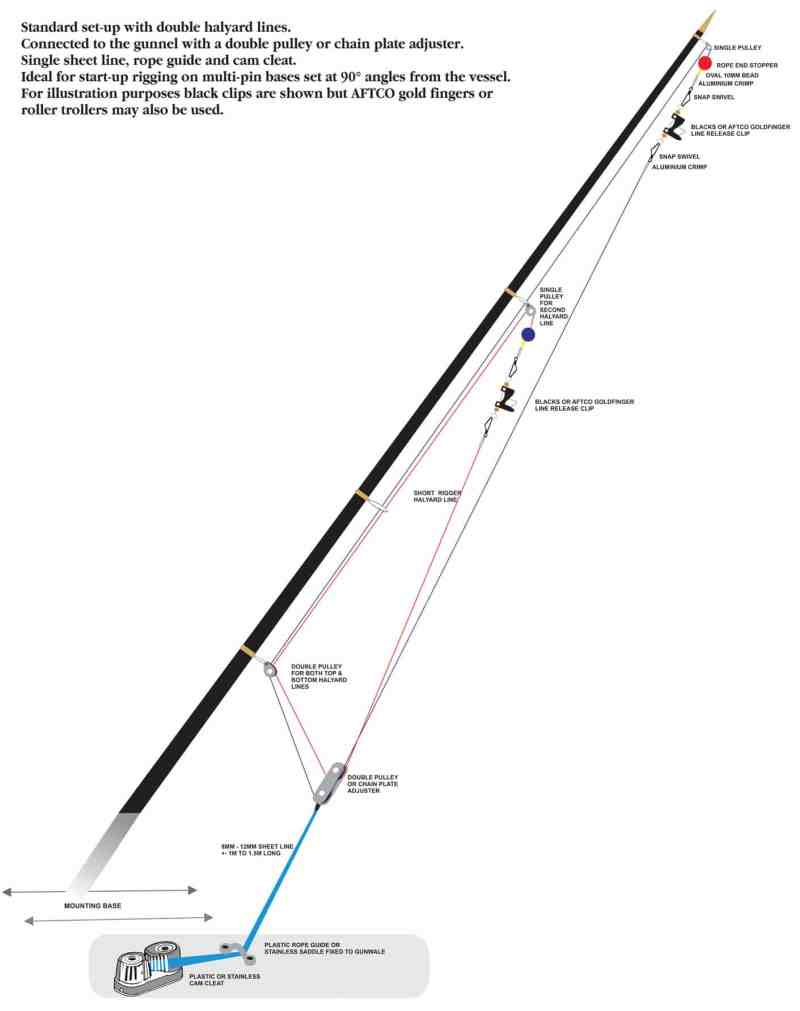

setting up offshore outriggers - Professional set-up with double halyard lines

Professional set-up with double halyard lines Courtesy Ski-Boat Magazine

Connected to the gunnel with 2 x double pulleys or 2 x chain plate adjusters.
Double sheet line, double rope guides and cam cleats.
Ideal for rigging on all multi-pin bases and U-frame fold-out bases.
For illustration purposes, AFTCO troller rollers are shown but AFTCO gold fingers or Black’s clips may also be used.

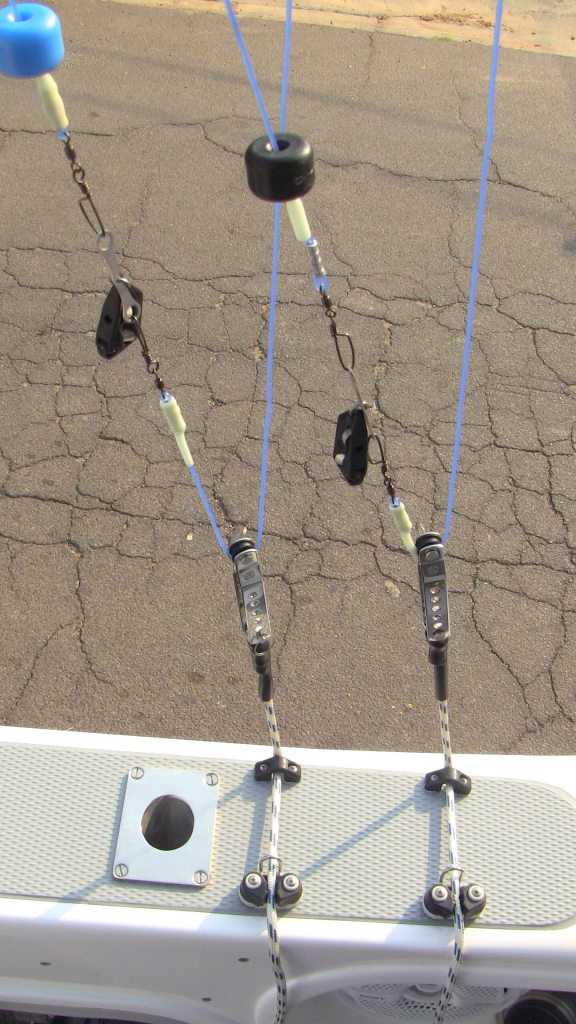

setting up offshore outriggers - rope guides and cam cleats

Note the relative position of the rope guides and cam cleats. Courtesy Ski-Boat Magazine

setting up offshore outriggers - alternative rigging for cam cleat and rope guides

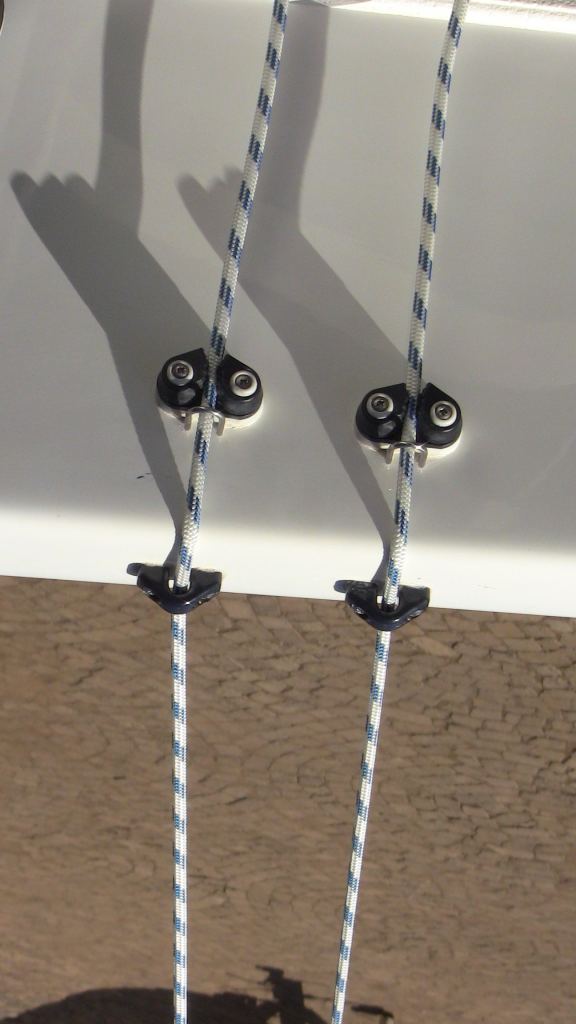

This shows an alternative way to install the rope guides and cam cleats on the gunwales of smaller boats Courtesy Ski-Boat Magazine

Rigging System 4: Tag Line Set-Up with Single or Double Halyard Lines

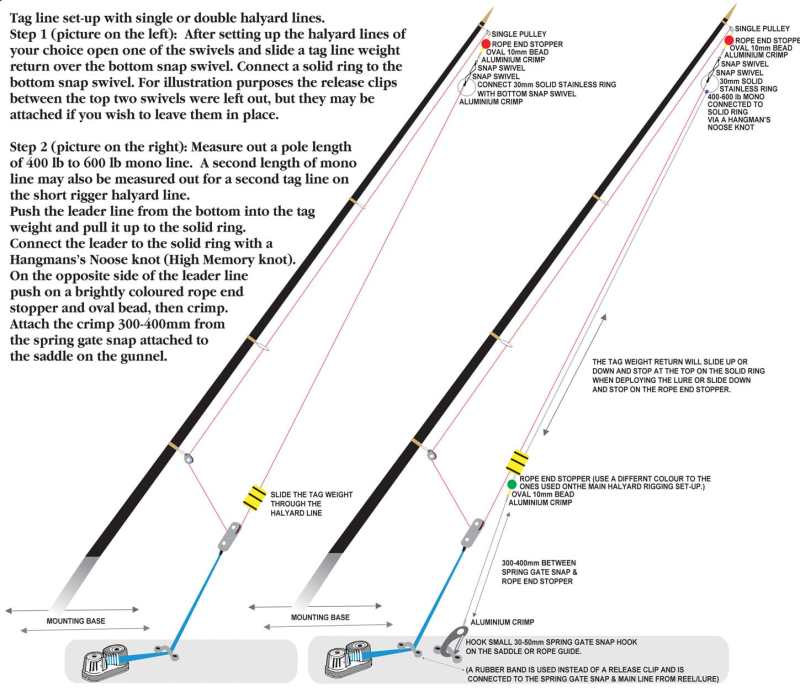

setting up offshore outriggers - Tag line set-up with single or double halyard lines.

Tag line set-up with single or double halyard lines Courtesy Ski-Boat Magazine

Step 1 (picture on the left):

After setting up the halyard lines of your choice, open one of the swivels and slide a tag line weight return over the bottom snap swivel.
Connect a solid ring to the bottom snap swivel.
For illustration purposes, the release clips between the top two swivels were left out, but they may be attached if you wish to leave them in place.

Step 2 (picture on the right):

Measure out a pole length of 400-pound to 600-pound mono line. A second length of mono line may also be measured out for a second tag line on the short rigger halyard line.
Push the leader line from the bottom into the tag weight and pull it up to the solid ring.
Connect the leader to the solid ring with a Hangman’s Noose knot (High Memory knot).
On the opposite side of the leader line, push on a brightly colored rope end stopper and oval bead, then crimp.
Attach the crimp 12 inches (300 millimeters) to 16 inches (400 millimeters) from the spring gate snap attached to the saddle on the gunnel.

setting up offshore outriggers - spring gate

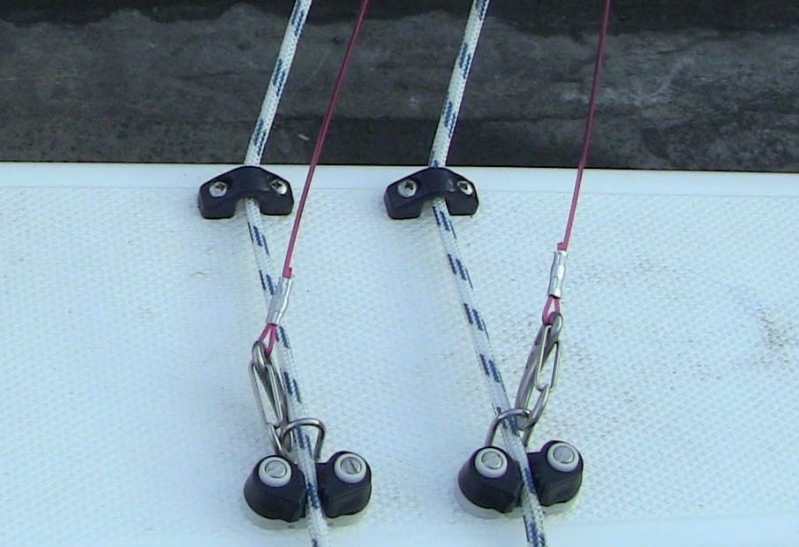

The spring gate snap is crimped onto the mono leader of the tag line and attached to the cam cleats saddle. Courtesy Ski-Boat Magazine

setting up offshore outriggers - halyard line and mono tag line through tag weight

This shows the halyard line and mono tag line through tag weight Courtesy Ski-Boat Magazine

setting up offshore outriggers - knot connected to solid ring

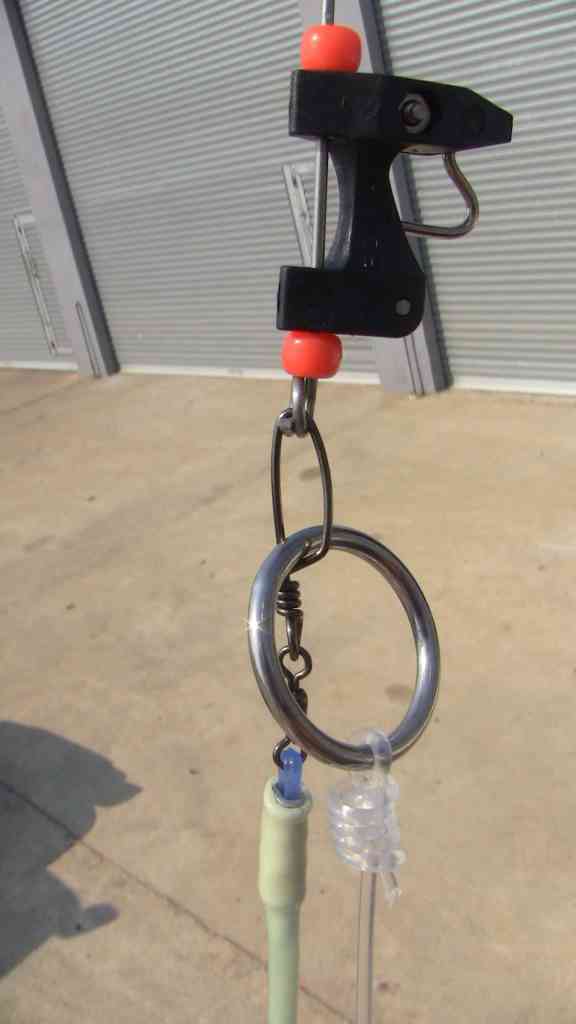

Closeup of solid ring with a hangman’s noose or high-memory knot Courtesy Ski-Boat Magazine

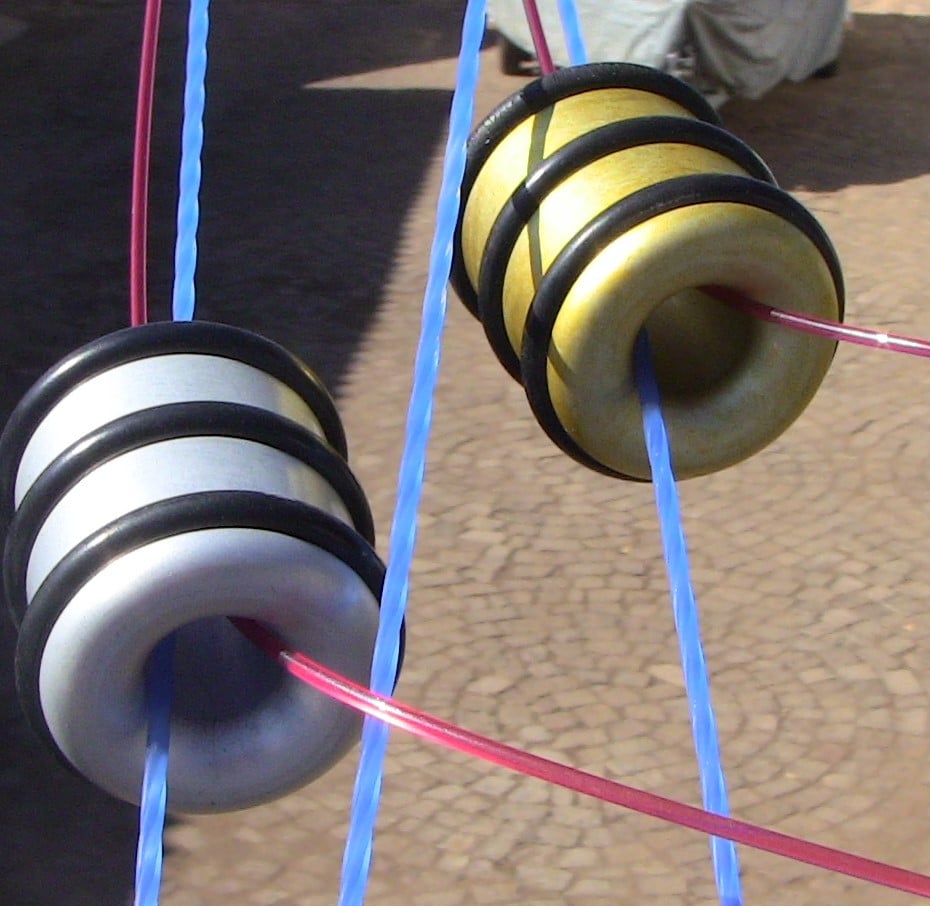

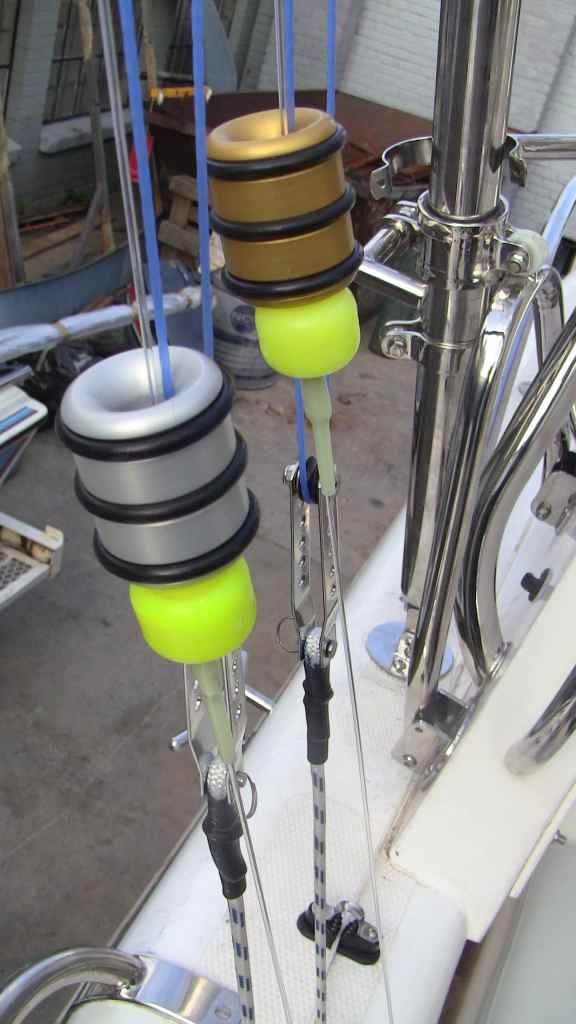

setting up offshore outriggers - closeup of tag weight resting on rope-end stopper

Closeup of tag weight resting on rope-end stopper Courtesy Ski-Boat Magazine

Rigging System 5: Center Rigger Setup with Single Halyard Line

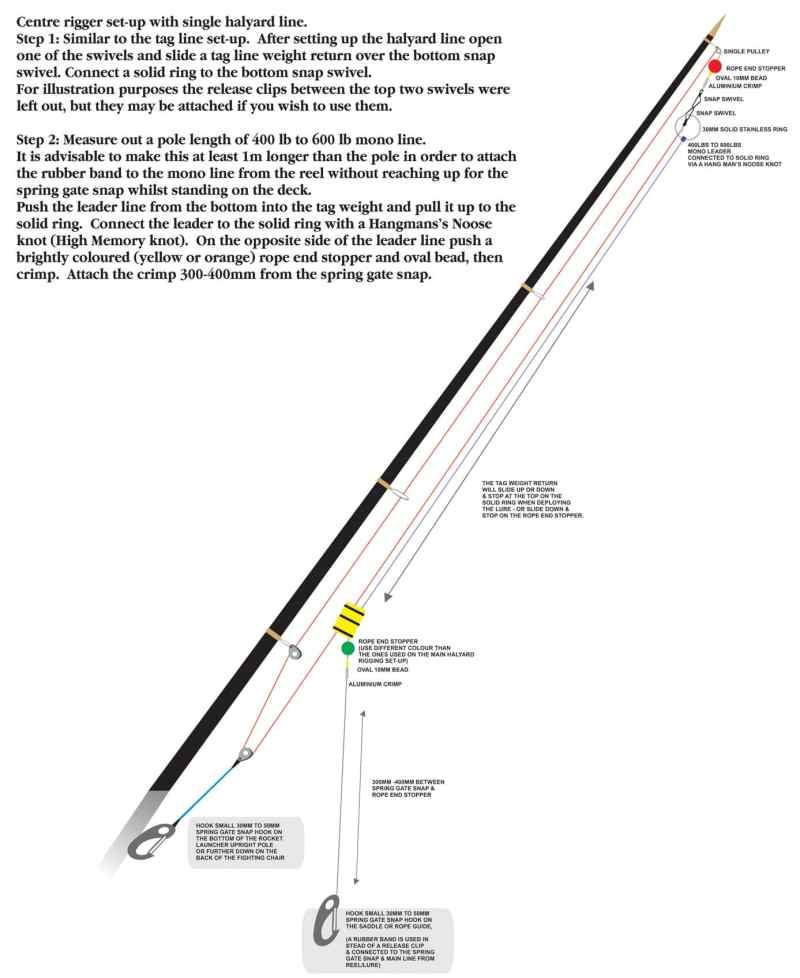

Center rigger setup with single halyard line - Center rigger setup with single halyard line

Center rigger setup with single halyard line Courtesy Ski-Boat Magazine

Step 1:

Similar to the tag line set-up.
After setting up the halyard line, open one of the swivels and slide a tag line weight return over the bottom snap swivel.
Connect a solid ring to the bottom snap swivel.
For illustration purposes, the release clips between the top two swivels were left out, but they may be attached if you wish to use them.

Step 2:

Measure out a pole length of 400-pound to 600-pound mono line.
It is advisable to make this at least 1 meter longer than the pole in order to attach the rubber band to the mono line from the reel without reaching up for the spring gate snap while standing on the deck.
Push the leader line from the bottom into the tag weight and pull it up to the solid ring.
Connect the leader to the solid ring with a Hangman’s Noose knot (High Memory knot).
On the opposite side of the leader line, push a brightly colored (yellow or orange) rope end stopper and oval bead, then crimp.
Attach the crimp 12 inches (300 millimeters) to 16 inches (400 millimeters) from the spring gate snap.
