What to Look for in a Boat Trailer

Think of your boat trailer as a chariot to deliver your boat to new adventures

July 3, 2019

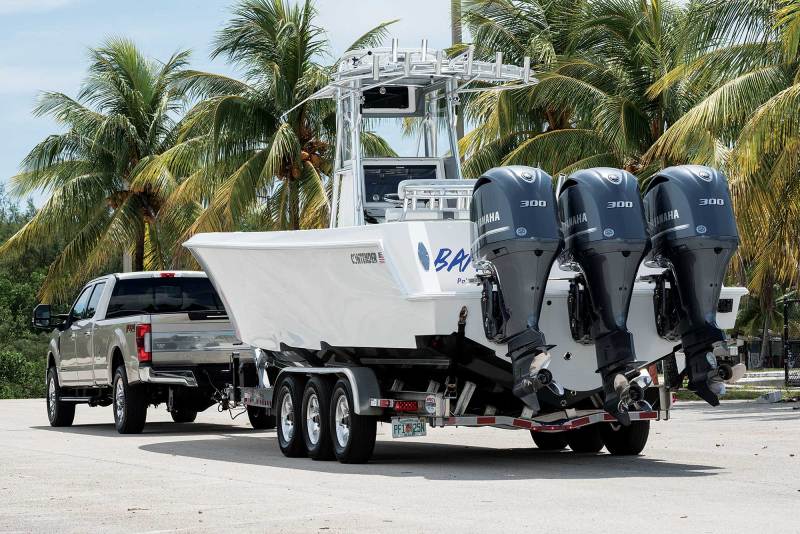

Truck pulling a boat trailer
Boat trailers with aluminum frames are lighter than those with steel frames and offer greater corrosion resistance. Bill Doster

Thank goodness for boat trailers. Without them, many anglers might not own boats. Marinas would fill to capacity, and prospective boat owners would be out of luck.

That, of course, is not the case. An estimated 11 million boats ride to and from the water on trailers in the United States. To me, a trailer is a chariot that carries my fishing boat to new adventures.

Yet a trailer for a salt­water boat faces a tough life. It requires rugged construction and corrosion-resistant finishes and equipment, as well as regular maintenance, to keep it safely rolling down the highway. Here are 10 factors to consider when choosing your chariot.


1. Weight Rating
When buying a new trailer, your boatbuilder, dealer or trailer shop serves as an invaluable source in helping you find just the right trailer for your boat, ensuring that the trailer is rated for the weight of the boat and trailer combined—known as the gross trailer weight (GTW). Determined by a combination of the axle ratings, frame construction and tire capacities, this spec should be labeled on the trailer itself.

A boat manufacturer, dealer or trailer shop will also make sure the tongue weight—the amount of weight exerted by the ­coupler on the tow hitch— is correct. It is usually about 10 percent of the GTW. This is an important consideration when towing. Too little tongue weight can lead to dangerous trailer sway, and too much can overly stress the tow hitch and the tow vehicle’s rear suspension and adversely affect vehicle steering.

2. Trailer Frame
Boat trailers dunked in salt or brackish water are far more subject to ­corrosion than those used in fresh water, so picking the right frame material is critical. Aluminum or ­galvanized-steel trailers hold up better in marine environments than painted steel trailers. Aluminum trailers can cost as much as 50 percent more than comparable galvanized trailers, but aluminum models also tend to last longer and stay better-looking than ­galvanized-steel trailers. For maximum service life, all trailer models should be thoroughly rinsed after each dunking.

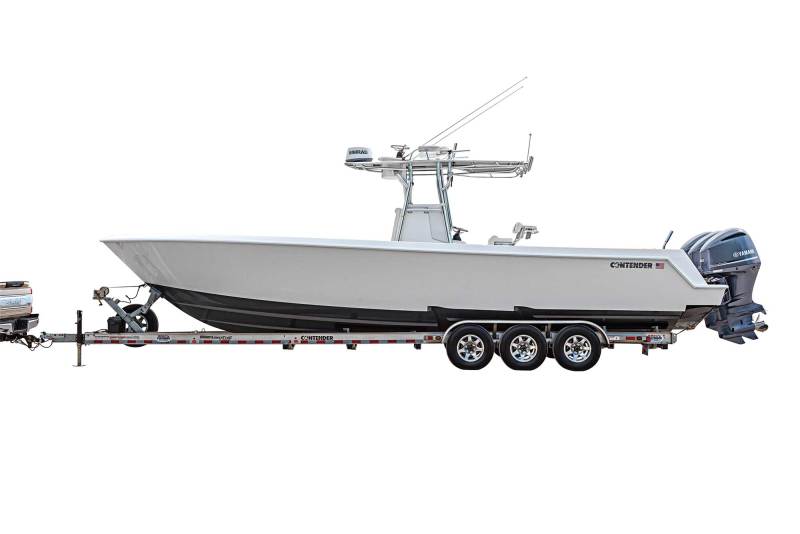

Three-axle trailer with boat
Boat trailers are available in single-, double- and triple-axle ­configurations, depending on the required gross trailer weight capacity. Bill Doster

3. Support Systems
Properly fitting the trailer to the boat proves critical in creating sufficient support for the hull and allowing the boat to launch and load easily. Support usually comes in the form of either bunks or rollers, but in either case, each boat model requires a custom fit. Otherwise, the hull might become damaged, and you might experience difficulties launching and loading. For the best advice on fitting the boat to the trailer, consult your boat manufacturer, dealer or trailer shop.

Trailer bunks covered with carpet or special plastic runners provide excellent support and work well where the angle of the launch ramp is fairly steep. Rollers work best when the ramp angle is shallow or power loading is prohibited. However, with roller supports, securing the boat on the trailer is particularly crucial because the boat can inadvertently roll off.

4. Suspension Systems
Many boat trailers have leaf-spring suspension systems to cushion the ride, but these don’t damp the bouncing motion. On the other hand, many boat trailers now use torsion axles because these reduce bouncing and allow the boat to ride lower for more stability. But torsion axles can be more expensive than leaf-spring systems.


5. Trailer Tires
Use trailer tires (marked ST on the sidewall for special trailer service). These have tougher sidewalls for the rigors of towing. For optimal performance, and to avoid blowouts and trailer sway, maintain trailer tires with the maximum air-pressure rating posted on the sidewall. Trailer tires achieve their maximum capacity rating only at maximum air pressure. Also, the total rating of all trailer tires should at least match the trailer’s gross-axle-weight rating.

6. Tongue Jacks
These hand-crank devices let you easily lift or lower a heavy trailer coupler when detaching or hooking up the trailer to the tow vehicle. Located near the coupler, some tongue jacks simply telescope in and out, while others have swing-away features for stowing them securely when towing. Some also have wheels that let you jostle the trailer tongue a bit, but heavy-duty jacks usually feature just a metal “foot” that does not roll.

As with trailer frames, avoid painted-steel tongue jacks because these corrode far too quickly when exposed to salt water. Instead opt for the corrosion resistance of a cadmium-plated model from a company such as Fulton. These too will eventually rust but will last longer than painted steel.


7. Side Guides and Posts
Side guides and posts help you line up the hull on the trailer when loading at the ramp. Not all trailers have these, but they can be helpful when crosswinds or currents want to push the boat sideways. Side guides are usually carpeted horizontal boards on both sides of the trailer, while posts are vertical plastic pipes that spin as the boat is coming onto the trailer.

8. LED Versus Conventional Lights
Two styles of trailer taillights and side-marker lights are available: conventional, incandescent bulbs and the newer LED “cluster” lights. The advantage of the former is that replacement bulbs are inexpensive and readily available. LED lights have longer life spans, stay cooler and react to brake-light inputs milliseconds faster. Their downside is, because most are sealed units, if a light goes out, you have to replace the entire unit (not just the bulb cluster).

LED trailer lights used to be far more expensive than conventional lights, but the good news is that LEDs are coming down in price, making them a more logical choice for today’s saltwater-boat trailers.

Read Next: Trailer Trekking

9. Bearing Lubrication
Trailer wheel-bearing ­protectors are a godsend. These ensure that the wheel bearings are continuously swathed in either high-quality marine grease or an oil bath, and at the same time, seal the wheel hubs to prevent water intrusion.

The most common system is a sealed bearing protector on the outside of the hub. Alternately, you can add an oil-bath hub kit equipped with see-through caps that show you how much oil is inside. In either case, checking the lube levels regularly ensures that the bearing-protection system is operating properly.

10. Brake Choices
Brakes are required by law in many states, largely for trailers rated for a GTW of more than 3,000 pounds. Disc brakes are increasingly popular for boat trailers because they shed water more readily than drum brakes. Discs are also self-adjusting—another big advantage over drums. In nearly every case, both types of brakes are activated via hydraulic surge systems. Surge brakes are tailor-made for boat trailers because they can be ­submerged without damage.

A properly built, equipped and ­maintained trailer can serve as your boat’s chariot to saltwater angling adventures for years to come.
